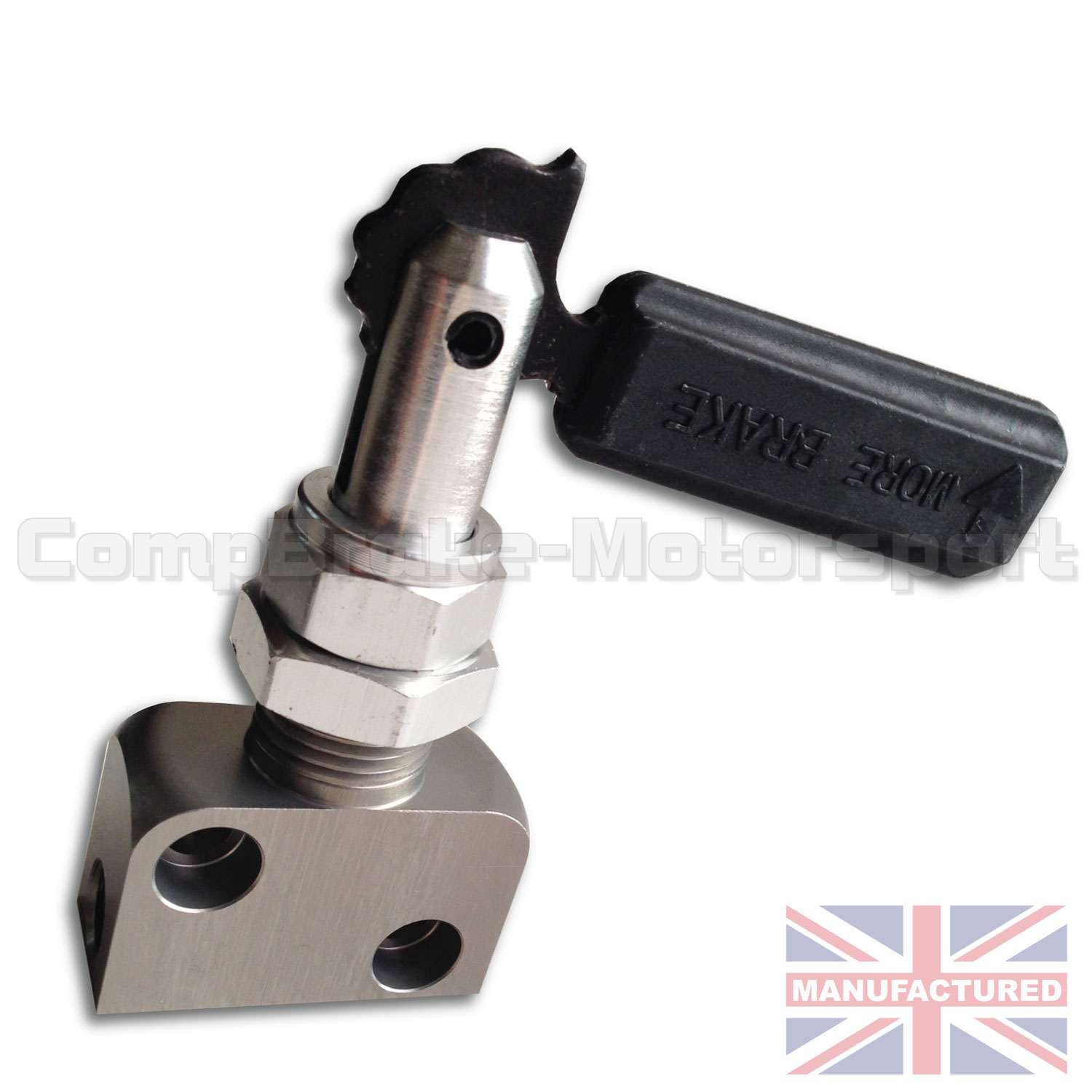

Brake Bias Proportioning Valve [Lever Type] Without Unions [Black] 7 fixed position control

BRAKE BIAS PROPORTIONING VALVE WITHOUT UNIONS (LEVER TYPE) BLACK WITH 7 FIXED POSITION CONTROL

Brake Bias Proportioning Valve, new and improved model. This is one of the essential designs in our brake accessories range, this product is lightweight and has been developed specially by our team for maximum strength, control & longevity.

Affordable with no compromise in quality, look no further than Compbrake Motorsport.

A must for all enthusiastic, competitive drivers with its 7 fixed position control lever!

BRAKE BIAS VALVE WITH A REDUCING RANGE FROM 0-60%. ALLOWS FRONT TO REAR BRAKE BIAS ADJUSTMENT FOR SINGLE MASTER CYLINDER APPLICATIONS.

Recognised as the industry standard these in our opinion are the best brake proportioning valves available, we are the UK’s major distributor of this race logistics product, which is used and supplied to most race car manufacturers worldwide, including F1 and Touring car manufacturers. Fully regulates the front to rear brake pressure by placing the valve in line to the rear brakes. More pressure is then applied to the front giving a much better overall braking performance. Available either with a 7 fixed position control lever or a rotational knob style for precise tuning for optimum bias control.

•     Highest pressure reduction available 60% over the full range.
•     Industry standard with fine adjustment .
•     Increase/decrease front to rear bias in cockpit.
•     Accurate and quick response.
•     Anti corrosive internals.
•     Preset & lock option.
•     Aluminium body.

As used on almost all competition cars. for handbrake turns & wet weather conditions, gravel, & forest applications.

Adjustable Proportioning Valve Instructions
in    =  line from master cylinder top port.
out =  line going to rear brakes bottom port.
