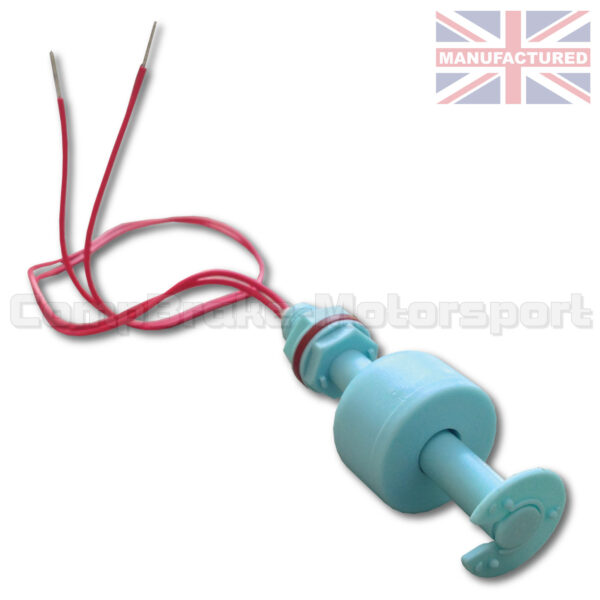

Brake Fluid Reservior Float Level Indicator Switch

BRAKE FLUID RESERVIOR FLOAT LEVEL INDICATOR SWITCH

This level switch can be easily fitted to our standard reservoirs RD3622 or RD3628. When your fluid level is low the switch contact is made and can be wired to illuminate a dash mounted LED or lamp.

Specifications:-

• Switch Type: 50 Watt (NC)
• Max Switching Current: 1 Amp
• Max Switching Voltage: 250 VDC
• Max Temp: 80° C
• Max Pressure: 25 PSIG

Dimensions:-

• Total Height: 67mm
• Wire Length: 350mm
• Float Height: 17mm
• Float Diameter: 26mm
• Stem Length: 52mm
• Thread Length: 15mm
• Thread Size: M10

Suitable for kit cars requiring SVA test.

This is one of the essential designs in our brake accessories range, this product is lightweight and has been developed specially by our team for maximum strength, control & longevity.

Affordable with no compromise in quality, look no further than Compbrake Motorsport.
