Universal Single Clutch Floor Mounted Hydraulic Pedal Kit – [KIT B]

£149.99 ex-VAT (£179.99 inc VAT UK only)

UNIVERSAL FLOOR MOUNTED PEDAL BOX KIT [PREMIER] REMOTE [HYDRAULIC] 1-PEDAL SINGLE CYLINDER [KIT B]

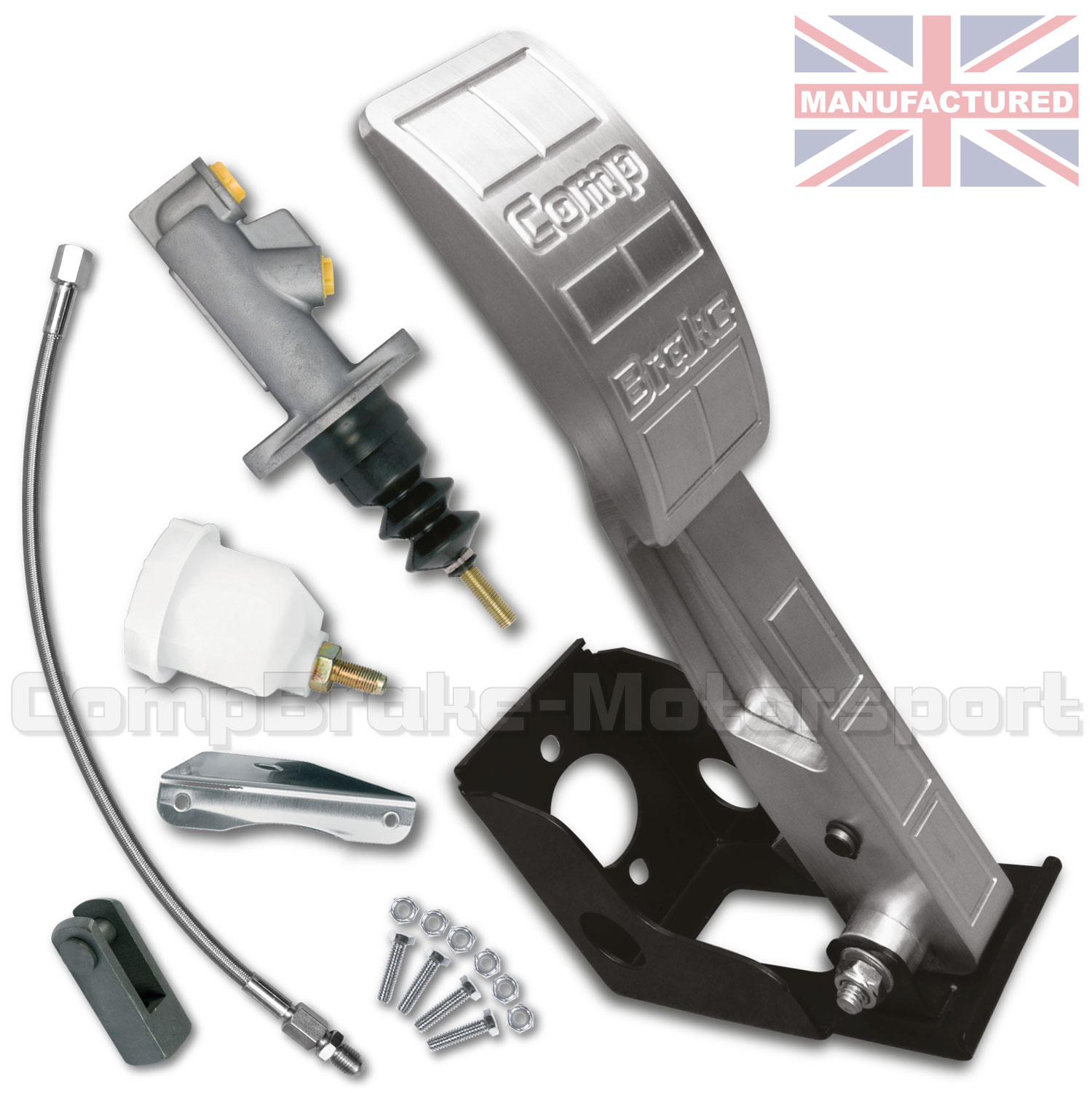

BOX KIT B INCLUDES – PREMIER BOX PLUS – [MASTER CYLINDER, CLEVIS, FIXINGS, RESERVOIR & MOUNTING BRACKET PLUS 1 X BRAKE LINE]

Product Description.

UNIVERSAL CLUTCH FLOOR MOUNTED PEDAL BOX KIT [PREMIER] REMOTE [HYDRAULIC] 1-PEDAL SINGLE CYLINDER [KIT B]

BOX KIT B INCLUDES – PREMIER BOX PLUS – [MASTER CYLINDER, CLEVIS, FIXINGS, RESERVOIR & MOUNTING BRACKET PLUS 1 X BRAKE LINE]

Compbrake brings over 25 years experience to the field of motorsport component design. Innovation and attention to detail are what keeps our pioneering race products ahead of the field, winning races time and time again.

Designed using the latest in-house CAD software and manufactured to the highest standards using high quality materials, our extensive range of pedal boxes remains unrivaled. With features such as a high quality balance bar with industry standard race bearing and our unique solid billet aluminium pedal, it’s easy to see why our pedal boxes are often copied but never bettered.

Mounting Location: Floor Mounted

Pedal: Light Weight Aluminium

Pedal Ratio: 5:1.

Weight: (2.0 Kg)

Approx Dimensions: Width 260mm, Pedal Height 280mm, Box Depth 140mm (Depth Including Master Cylinders 250mm)

COMPBRAKE LTD PREMIER ranges of pedal boxes are proving to be very popular with race teams worldwide.

These pedal boxes represent a major step forward in car control, giving the driver better feel, greater dexterity and the most important bit – The PREMIER range is lightweight, flexible and ergonomically efficient.

Pedal pivots on nylon bushes, giving an incredible smooth motion with very little maintenance.

Special Features

  • Adjustable clutch pedal stop prevents clutch over-stroking.
  • Fully fitted and installed with SFN (Specially Formulated Nylon), a self lubricating material used in many F1 installations. Unlike phosphor bronze bushes, SFN is guaranteed for life.
  • One piece solid billet pedals made from 7075 aircraft grade aluminium.
  • Pedal hard anodised to 60 microns for lifetime wear guarantee.
  • New aerospace liner friction bushes ® for precision wear contact and optimum pivot (replaces the old fashioned oilite bushes)
  • Fully Tig welded primed and powder coated for longevity and appearance.
  • Supplied with heat-treated plated connector rods and machined clevis.

This Pedal Box is designed for bulkhead installation. If you are not using a bulkhead then a strength plate must be used.
