Sportline Floor Mounted Hydro Kit – Universal Hydraulic Pedal Box & 300mm Handbrake Kit
£354.99 ex-VAT (£425.99 inc VAT UK only)

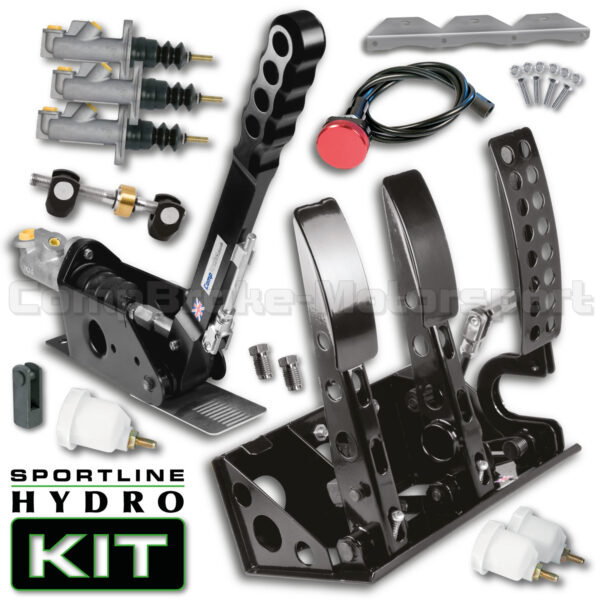

FLOOR MOUNTED HYDRO KIT [SPORTLINE-UNIVERSAL] REMOTE [HYDRAULIC] PEDAL BOX + 300MM VERTICAL HANDBRAKE
SPORTLINE FLOOR MOUNTED HYDRO KIT INCLUDES:

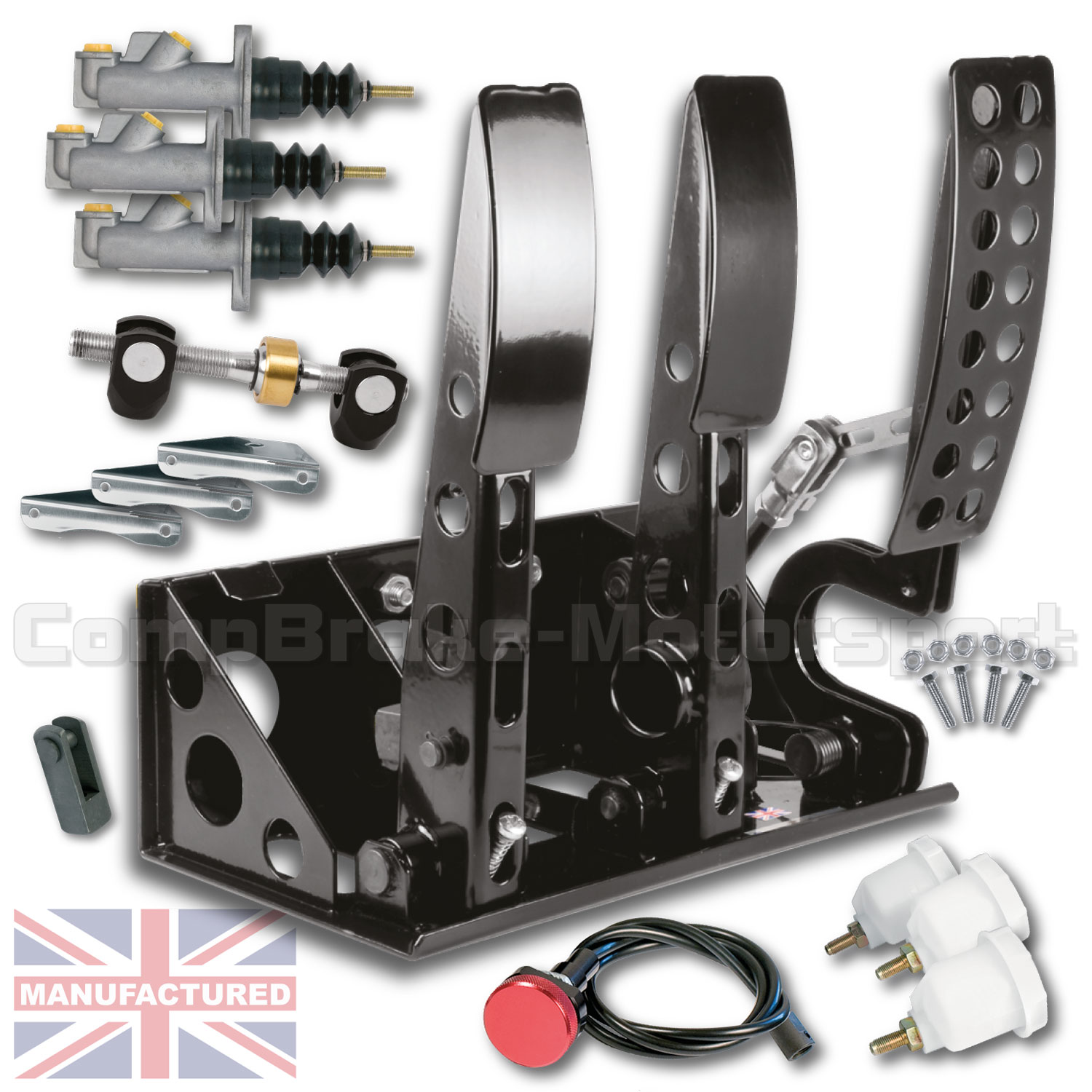

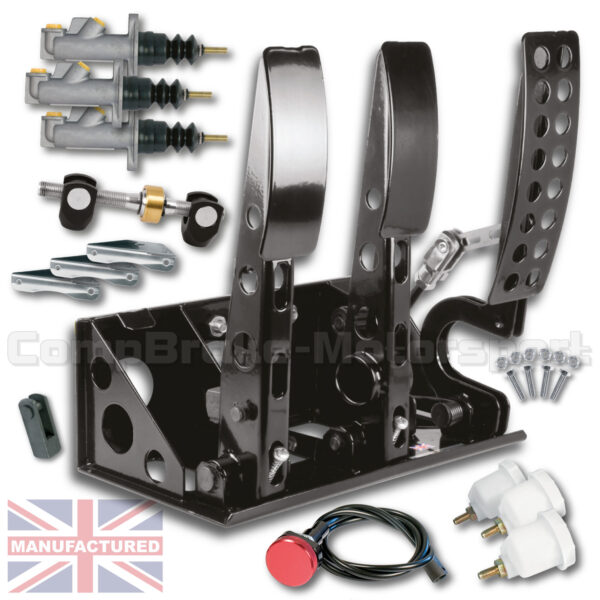

SPORTLINE FLOOR MOUNTED 3-PEDAL BOX PLUS – [3 X MASTER CYLINDERS, CLEVIS, FIXINGS, BALANCE BAR, 3 X RESERVOIRS, 3 X MOUNTING BRACKETS & REMOTE CABLE ADJUSTER]
300MM SPORTLINE HANDBRAKE BOX PLUS – [1 X MASTER CYLINDER, 1 X CLEVIS & FIXINGS PLUS UNIONS]
Product Description.
FLOOR MOUNTED HYDRO KIT [SPORTLINE-UNIVERSAL] REMOTE [HYDRAULIC] PEDAL BOX + 300MM VERTICAL HANDBRAKE
SPORTLINE FLOOR MOUNTED HYDRO KIT INCLUDES:
SPORTLINE FLOOR MOUNTED 3-PEDAL BOX PLUS – [3 X MASTER CYLINDERS, CLEVIS, FIXINGS, BALANCE BAR, 3 X RESERVOIRS, 3 X MOUNTING BRACKETS & REMOTE CABLE ADJUSTER]
300MM SPORTLINE HANDBRAKE BOX PLUS – [1 X MASTER CYLINDER, 1 X CLEVIS & FIXINGS PLUS UNIONS]
Pedal Box Details:
Compbrake brings over 25 years experience to the field of motorsport component design. Innovation and attention to detail are what keeps our pioneering race products ahead of the field, winning races time and time again.
Designed using the latest in-house CAD software and manufactured to the highest standards using high quality materials, our extensive range of pedal boxes remains unrivaled. With features such as a high quality balance bar with industry standard race bearing and our unique Light Weight Steel pedals, it’s easy to see why our pedal boxes are often copied but never bettered.
Mounting Location: Floor Mounted
Pedals: Light Weight Steel.
Pedal Ratio: 5:1.
Weight: 5.8 lbs (2.6 Kg)
Approx Dimensions: Width 260mm, Pedal Height 280mm, Box Depth 140mm (Depth Including Master Cylinders 250mm)
COMPBRAKE LTD SPORTLINE ranges of pedal boxes are proving to be very popular with race teams worldwide.
These pedal boxes represent a major step forward in car control, giving the driver better feel, greater dexterity and the most important bit – The SPORTLINE range is mid-weight, flexible and ergonomically efficient.
All 2 pedals pivot on nylon bushes, giving an incredible smooth motion with very little maintenance.
Special Features
- Lightweight accelerator linkage included. Will accept single or twin cables.
- Adjustable spring-loaded accelerator pedal allows the pedal to be positioned exactly to your requirements.
- Pedal Height adjustable (20mm) fabricated lightweight steel with anti-slip surfaces.
- Adjustable clutch pedal stop prevents clutch over-stroking.
- Fully fitted and installed with SFN (Specially Formulated Nylon), a self lubricating material used in many F1 installations. Unlike phosphor bronze bushes, SFN is guaranteed for life.
- Pedals hard anodised to 60 microns for lifetime wear guarantee.
- New aerospace liner friction bushes ® for precision wear contact and optimum pivot (replaces the old fashioned oilite bushes)
- Fully Tig welded primed and powder coated for longevity and appearance.
- Supplied with heat-treated plated connector rods and machined clevis.
This Pedal Box is designed for bulkhead installation. If you are not using a bulkhead then a strength plate must be used.
Handbrake Details:
This handbrake is specially designed and made with attention to detail for many motorsport competition applications from stage rallying to drifting, focusing on precision handling and optimum control.
VERTICAL HANDBRAKE FEATURES:
- Strong Light Weight Construction
- Aluminium Handle
- Black Powder Coated Fabricated Body
- Clip to Lock the Locking Pin
- Master Cylinder of your choice (0.625, 0.7, 0.75)
- Inserts to Accept Master Cylinder Mounting Bolts
- Length Adjustable Locking Pin
- Lightening Holes
- Oilite Phosphor Bronze Bushes Inserted for Precision and Optimum Pivot
- Profiled Billet Aluminium Grip Handle for Optimum Non-Slip Grip
- Lock Nut for Securing Handle & Push Rod Throw
- Lock Nut for Securing Pin Length
- Master Cylinder
- Pre-Fabricated Holes for Ease of Mounting
- Quick Release Modern Clevis
- Spherical Rod End Pivot Mechanism
- Stainless Steel Multi-Position Locking Plate
- Unique Adjustable Locking Position
- 8 Point Locking Mechanism
Drifting and Rally driving requires extensive use of the handbrake, which can show weaknesses in standard cable type handbrakes. The hydraulic system eliminates the weaknesses as in the standard cable type handbrakes.
The hydraulic system connects into the brake line that runs to the rear callipers and requires a lot less force to completely lock both rear wheels when needed.
Drivers to lock up or break loose the rear wheels when they want to Drift the car sideways or spin on the spot use a hydraulic handbrake. Rally drivers regularly need to spin 180 degrees “on the spot” when they over shoot an intersection, or need to turn very hard left or right and there’s not enough wheel lock to achieve this.
The hydraulic handbrake is not used to stop the car.
A hydraulic hand brake can be added into the rear brake line system without changing the original mechanical handbrake setup.
Compbrake motorsport Ltd design and manufacture all these units in our own well-equipped factory based in England. These Hydraulic handbrakes are constructed out of lightened steel with a Black powder coat finish, giving you an extremely strong product that will last a lifetime.
Compbrake Ltd has developed a new range of adjustable lockable Hydraulic Handbrakes. These systems will allow you to use the Hydraulic Handbrake as a temporary park brake. Do NOT use the Hydraulic Handbrake as a permanent park brake.
These systems are for competition use only.
