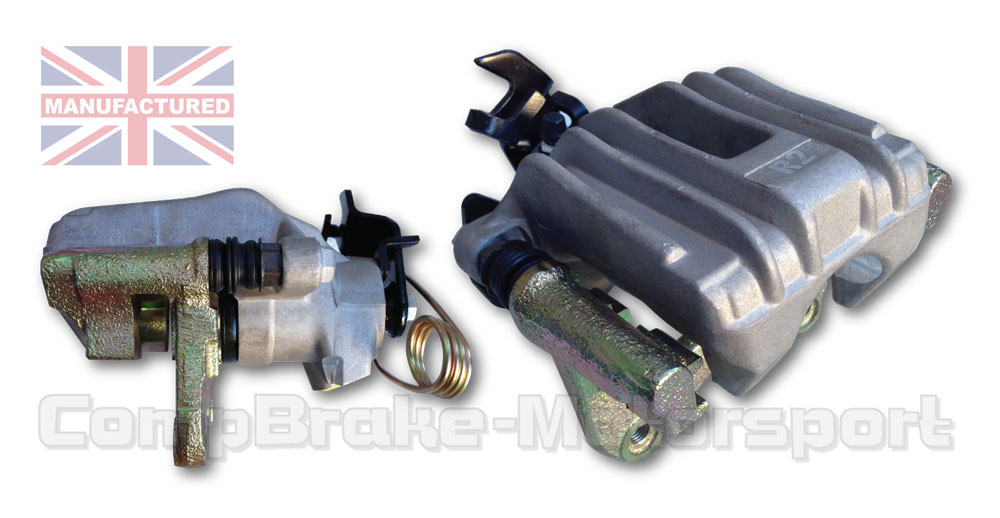

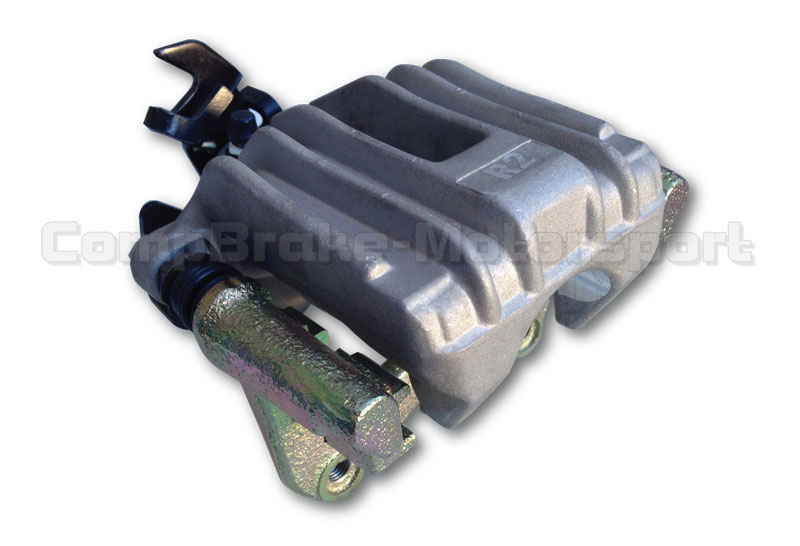

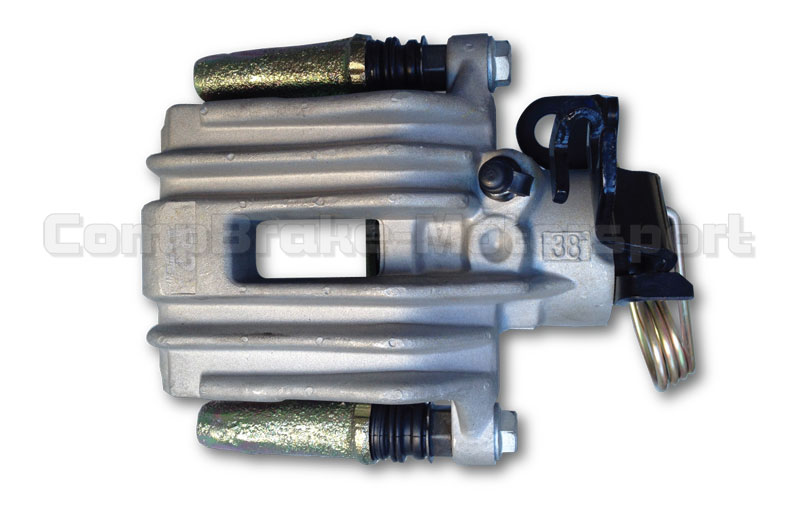

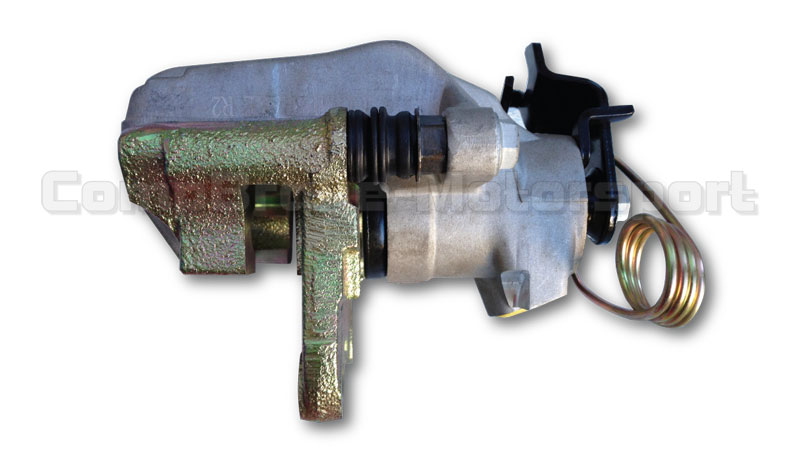

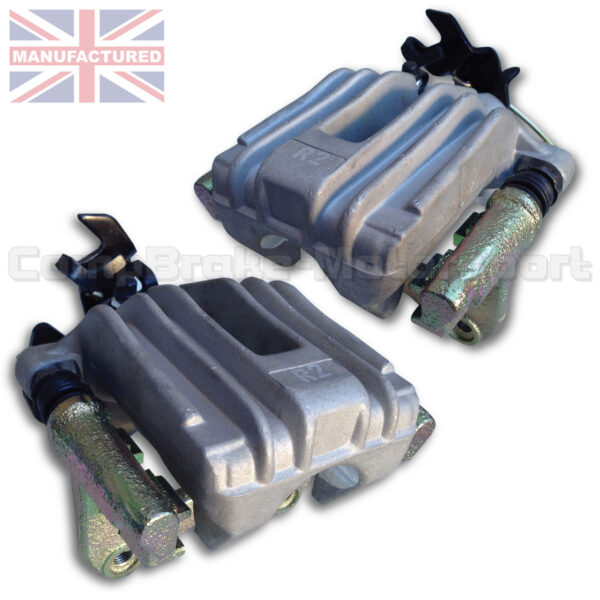

COMPBRAKE COMP-R2 REAR CALIPERS WITH BUILT-IN HANDBRAKE [GOLD/SILVER] PAIR
Compbrake brings over 30 years experience to the field of motorsport component design. Innovation and attention to detail are what keeps our pioneering race products ahead of the field, winning races time and time again.
Designed using the latest in-house CAD software and manufactured to the highest standards using the best quality materials, our comprehensive range of brake kits remain unrivalled.
The ultimate in design and technology – Compbrake braking solutions are a unique option for any high performance vehicle; each component has been carefully selected and tested to a very high standard. Our complete solutions are proven, using high performance cars driven by qualified ARDS drivers in race circuit conditions.
COMPBRAKE LTD – The PRO-R2 Rear Calipers are proving to be very popular with race teams worldwide.
PRO-R2 CALIPER – The faster you can stop, the faster you finish…
This is the caliper that is fitted on most Audi and VW rear axles. High quality engineering makes it the most reliable and effective rear-braking caliper available. Incorporating an excellent handbrake system these are brand new (Not reconditioned) and very competitively priced.
Each caliper is hand made and fully tested in our own UK factory incorporating our unique internal brake fluid crossover design eliminating the need for external tubing.
• 38mm stainless steel piston.
• Built-in parking brake with multi-position lever.
• Strong forged aluminium construction.
• Lightweight aluminium.
• Reduced unsprung weight and improved ride quality.
• Dual stainless steel bleeder screws.
• 12mm entry port feed.
• Weight 2.5kg
• Disc to mounting bell tightening Torque settings 14.0 Nm (10.5lb ft.)
4 POT PISTON STOPPING POWER WITH CONTROLLED PERFORMANCE…
Stainless steel brake pistons are installed with a new high temperature external seal for ultimate long term reliability and protection. Fitted with a quick release Porsche design sprung clip to make brake pad changing easier. Pistons fitted sizes are opposed to ensure extremely high consistent levels of friction under braking, and even help with pad wear.
