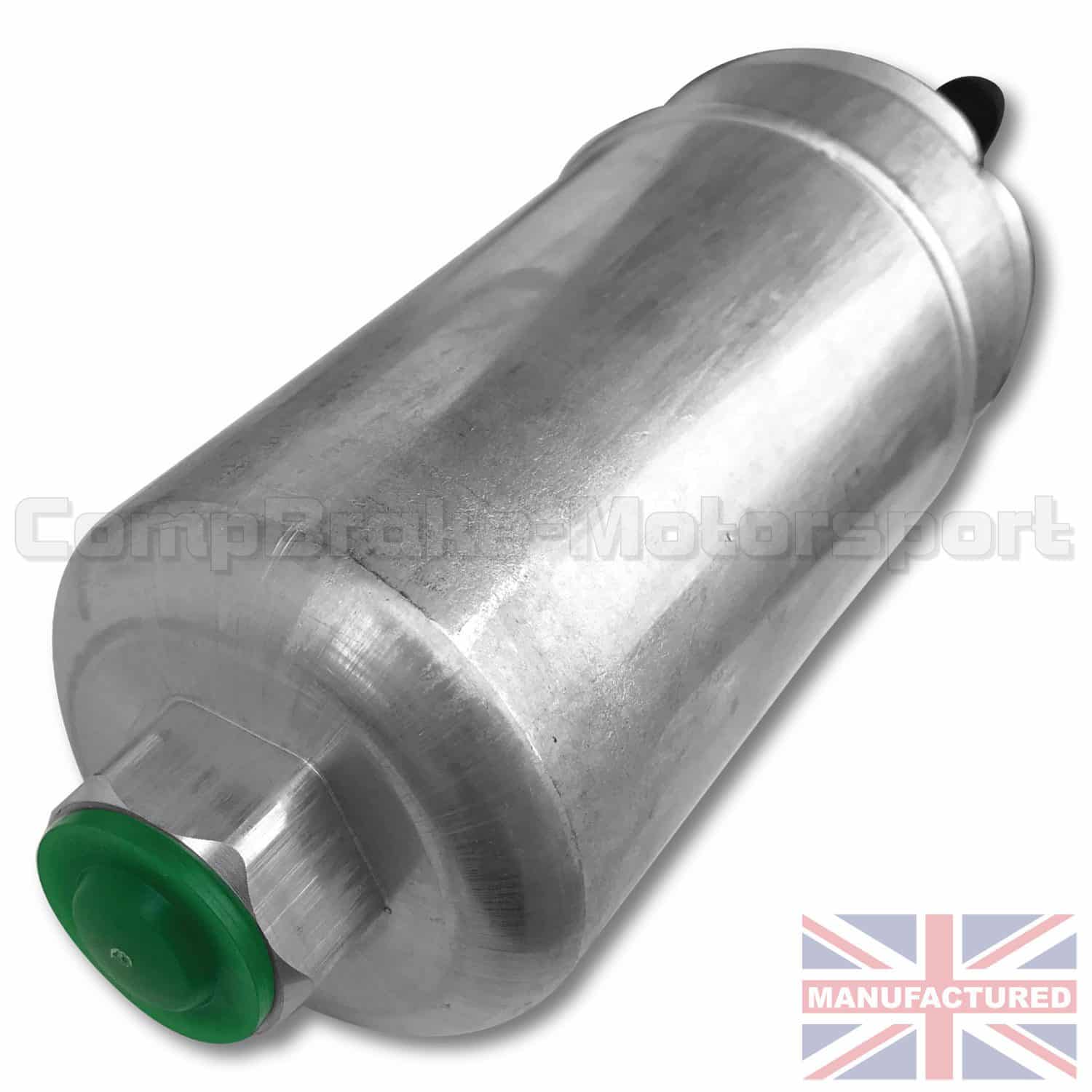

ELECTRIC RACE FUEL PUMP [BOSHE 044 EQUIVALENT]
This is one of the essential designs in our brake accessories range, this product is lightweight and has been developed specially by our team for maximum strength, control & longevity.
This unique professional unit is supplied to many racing teams and stage rally competitors.
Affordable with no compromise in quality, look no further than Compbrake Motorsport.
Capable of producing up to 300LPH and sufficient flow for up to 500bhp it provides a cost effective solution when needing to support your high performance fuel system requirements. Supplied complete with fuel filter bag, terminal connectors and dust covers the pump can be mounted either inside or outside of the tank. The inlet side of the fuel pump uses an M18x1.5 thread whilst the outlet utilises an M12x1.5. It is recommended that the fuel pump is no further away from the fuel tank than 0.6 meters to provide optimum performance.
Bosch 044 Fuel Pump Specs:
• Bosch Part Number: 0580254044
• Minimum Current: 12 Volts
• Operating Pressure: 72.5 PSI (5 Bar)
• Minimum Flow @ Outlet: 80 GPH (300 LPH)
• Fuel Pump Location: In-Line
• High Temperature Reduction: 8 GPH (30 LPH)
• Weight: 1030 Grams (2.27 Pounds)
• Fuel Pump Connections:
• Electrical: Positive M6 / Negative M5
• Pump Length = 196mm
• Pump Diameter = 60mm
• Inlet: M18 x 1.5
• Outlet: M12 x 1.5
