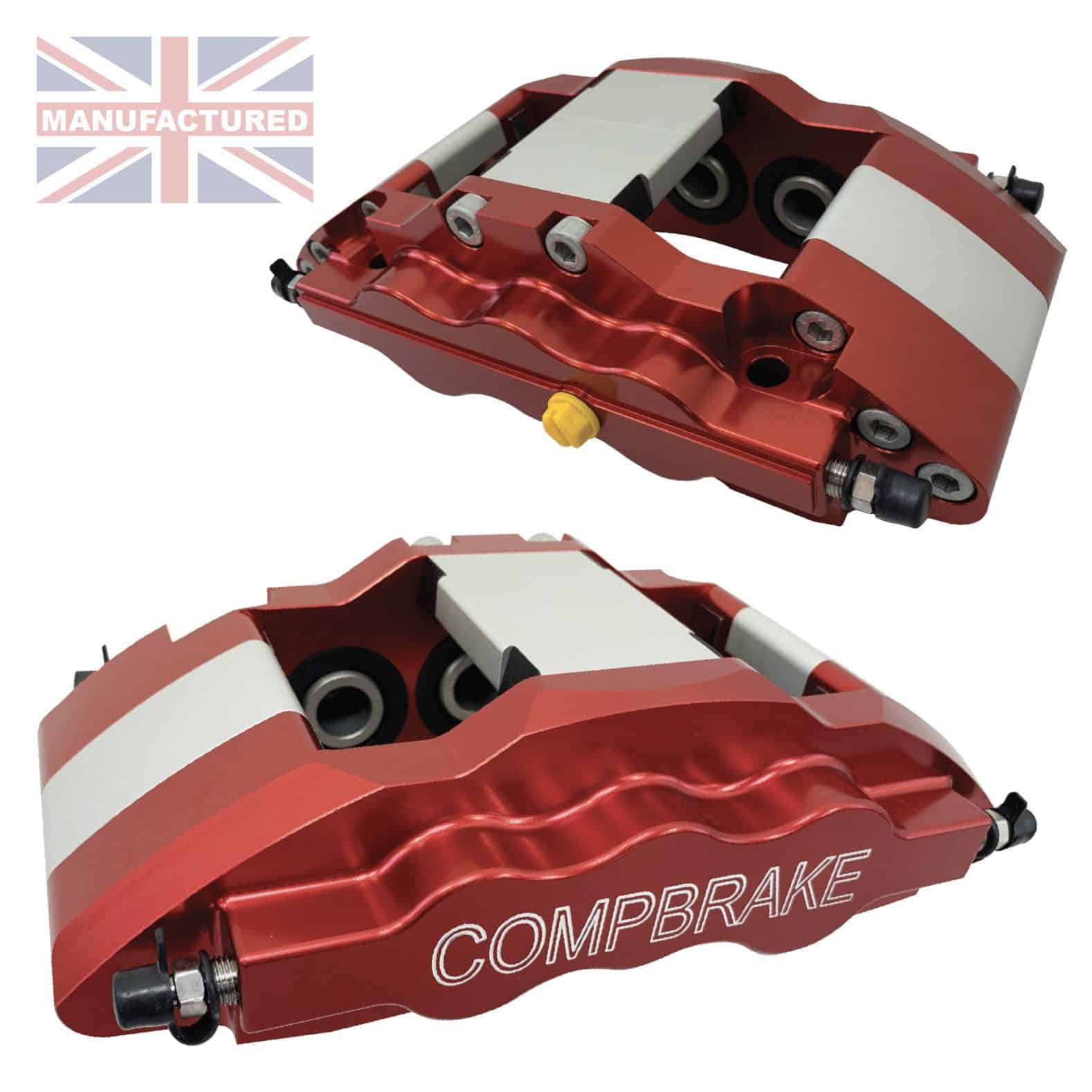

COMPBRAKE PRO-RACE 6 [6 POT] CALIPERS [2015 RED]
Compbrake brings over 30 years experience to the field of motorsport component design. Innovation and attention to detail are what keeps our pioneering race products ahead of the field, winning races time and time again.
New for 2015 these are one of the latest designs in our Caliper range, these Calipers are lightweight and have been developed specially by our team for maximum strength and control.
Designed using the latest in-house CAD software and manufactured to the highest standards using the best quality materials, our comprehensive range of brake kits remain unrivalled.
Affordable with no compromise in quality, look no further than Compbrake Motorsport.
The ultimate in design and technology – Compbrake braking solutions are a unique option for any high performance vehicle; each component has been carefully selected and tested to a very high standard. Our complete solutions are proven, using high performance cars driven by qualified ARDS drivers in race circuit conditions.
COMPBRAKE LTD – PRO-RACE 6 Calipers are proving to be very popular with race teams worldwide.
PRO-RACE 6 CALIPER – Speed is Desirable stopping is essential:
The Compbrake PRO-RACE 6 caliper weighs only 2.3kg, offering a substantial reduction in corner weight and aiding the handling of your vehicle. This huge reduction in both un-sprung weight and rotating mass offers major benefits in terms of comfort and road holding. One of the major advantages of the PRO-RACE 6 design is the total weight saving over conventional brake callipers.
Precision machined from aerospace specification 7075 aluminium and incorporating our unique internal brake fluid cross over design eliminating the need for external tubing.
PRO-RACE 6 Features:
• 7075 Billet aluminium
• 4 Bolt rigid bridge design for ease of pad changing
• Fitted with conical piston springs for accurate piston retraction
• High temperature square cut seals
• High temperature external wiper seals
• High temperature internal wiper seals
• Radial mounting centers 140mm
• Pistons stainless steel 40mm x 28mm with 5mm wall thickness
• Disc thickness range 28-32mm
• Suitable for 225mm-355mm rotors
• Disc to mounting bell tightening Torque settings 14.0 Nm (10.5lb ft.)
• Weight 2.3kg
6 POT PISTON STOPPING POWER WITH CONTROLLED PERFORMANCE…
Stainless steel brake pistons which are installed with a tapered knock off retaining spring to ensure a positive pedal feel when on and off the brakes. Piston sizes are specifically selected for each vehicle application, ensuring extremely high consistent levels of friction under braking. New high temperature external seals are installed for ultimate long-term reliability and protection. Our new secure 4 bolt bridge design makes ease of a brake pad changing.
Each caliper is hard anodised for protection and appearance.
