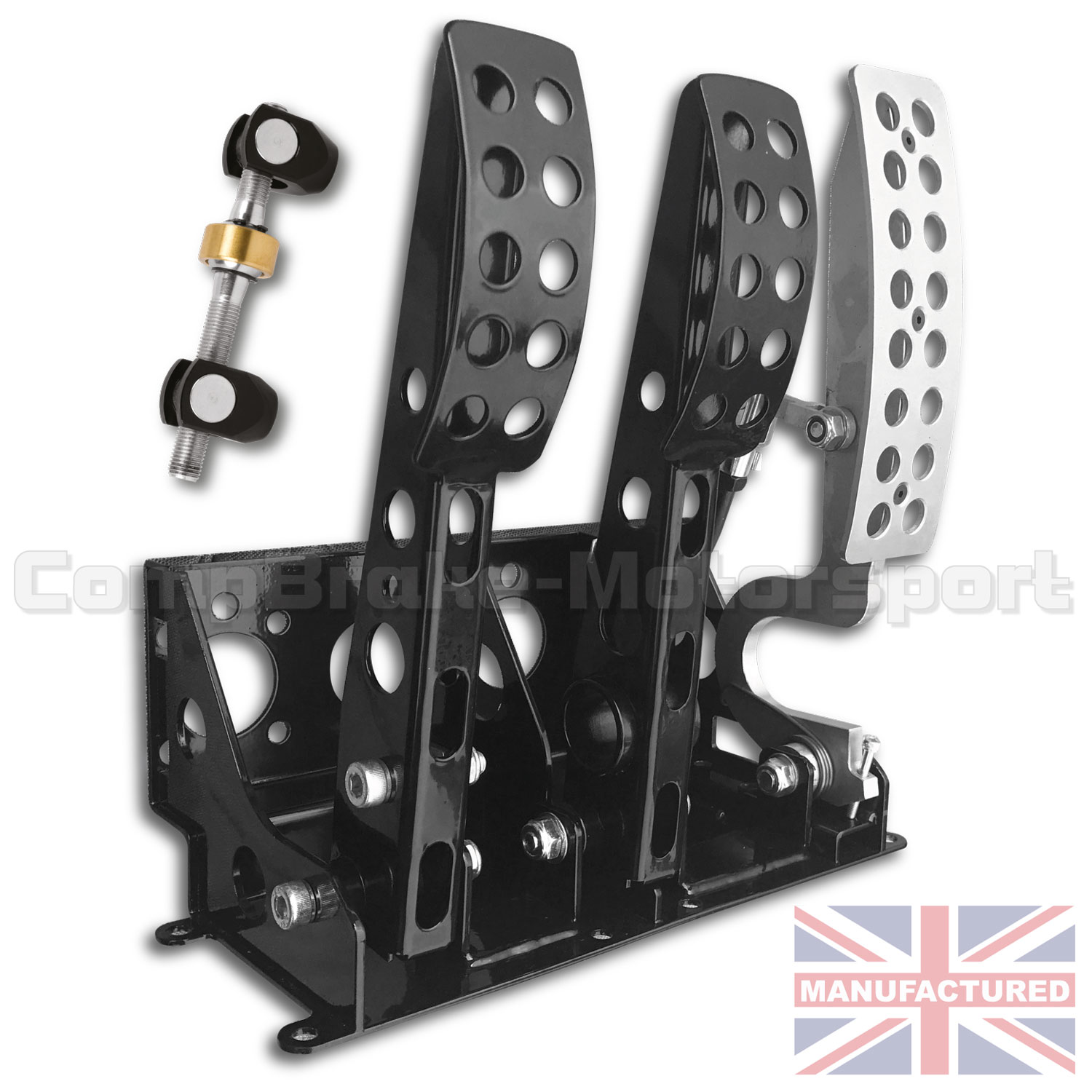

UNIVERSAL FLOOR MOUNTED PEDAL BOX [UPRATED] REMOTE [HYDRAULIC] 3-PEDAL & BALANCE BAR
BALANCE BAR KIT INCLUDES – UPRATED BOX PLUS BALANCE BAR
Compbrake brings over 25 years experience to the field of motorsport component design. Innovation and attention to detail are what keeps our pioneering race products ahead of the field, winning races time and time again.
Designed using the latest in-house CAD software and manufactured to the highest standards using high quality materials, our extensive range of pedal boxes remains unrivalled. With features such as a high quality balance bar with industry standard race bearing and our unique Light Weight Steel pedals, it’s easy to see why our pedal boxes are often copied but never bettered.
Mounting Location: Floor Mounted
Pedals: Light Weight Steel.
Pedal Ratio: 5:1.
Weight: (2.0 Kg)
Approx Dimensions: Width 260mm, Pedal Height 280mm, Box Depth 140mm (Depth Including Master Cylinders 250mm)
COMPBRAKE LTD UPRATED ranges of pedal boxes are proving to be very popular with race teams worldwide.
These pedal boxes represent a major step forward in car control, giving the driver better feel, greater dexterity and the most important bit – The UPRATED range is mid-weight, flexible and ergonomically efficient.
All 2 pedals pivot on nylon bushes, giving an incredible smooth motion with very little maintenance.
- Lightweight accelerator linkage included. Will accept single or twin cables.
- Adjustable spring-loaded accelerator pedal allows the pedal to be positioned exactly to your requirements.
- Pedal Height adjustable (20mm) fabricated lightweight steel with anti-slip surfaces.
- Adjustable clutch pedal stop prevents clutch over-stroking.
- Fully fitted and installed with SFN (Specially Formulated Nylon), a self-lubricating material used in many F1 installations. Unlike phosphor bronze bushes, SFN is guaranteed for life.
- Pedals hard anodised to 60 microns for lifetime wear guarantee.
- New aerospace liner friction bushes ® for precision wear contact and optimum pivot (replaces the old fashioned oilite bushes)
- Fully Tig welded primed and powder coated for longevity and appearance.
- Supplied with heat-treated plated connector rods and machined clevis.
This Pedal Box is designed for bulkhead installation. If you are not using a bulkhead then a strength plate must be used.
